I have reverted to the old simple straight HTML pasde2.com site as the fancy Joomla site was only getting me spam. I will hopefully update this site soon.
For now there is only the RTFM files and a link to the YouTube channel.

RTFM is an FM synthesizer implemented in an FPGA.
"RTFM" the Real Time FM synthesizer

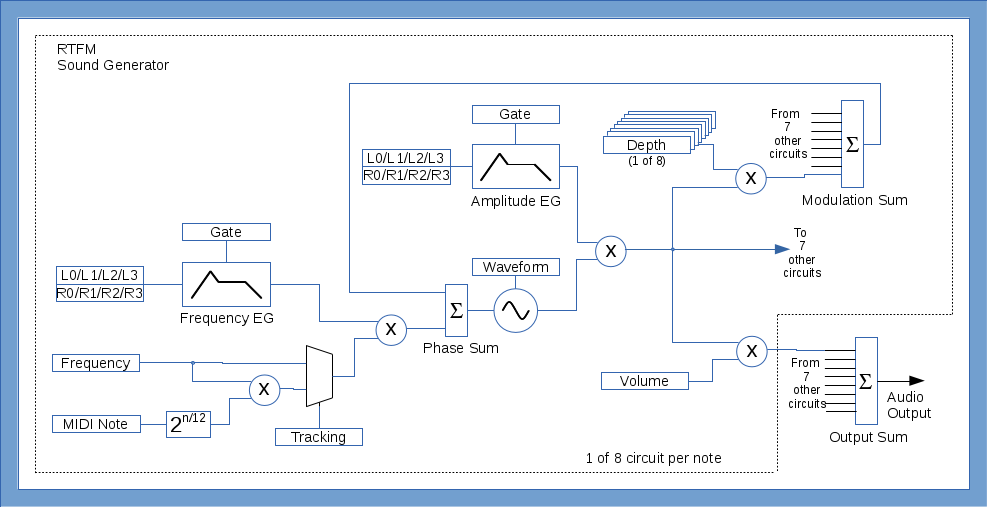

RTFM Block Diagram


The PASDE2 YouTube channel has a few videos that describe another synthesizer implemented in an FPGA, this one is based on simple subtractive synthesis.
It is also discussed in this thread on the Look Mum No Computer forum.
The images below are oscilloscope screen captures of various waveforms that it can generate.

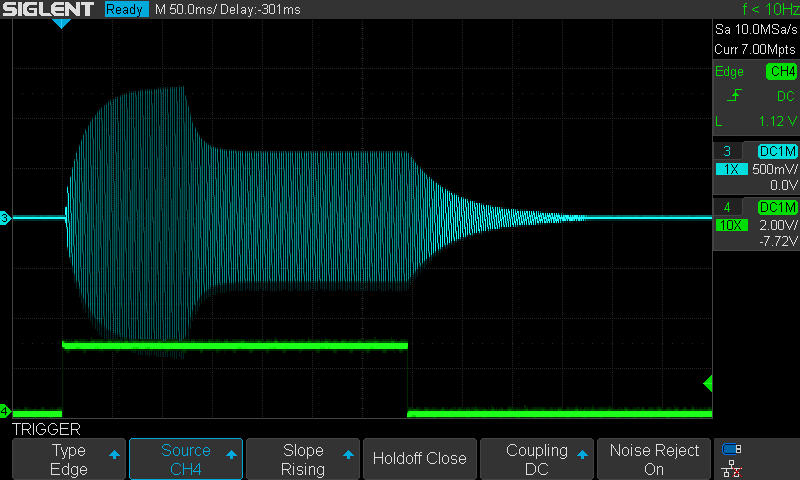

ADSR Envelope

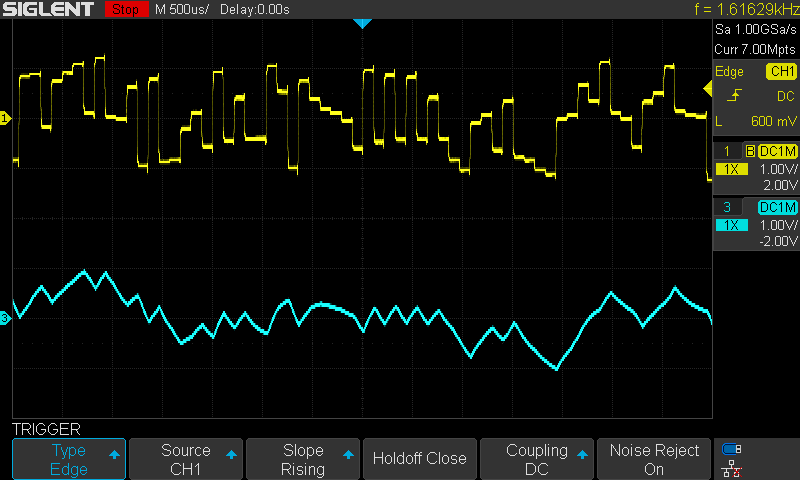

Random Waveform

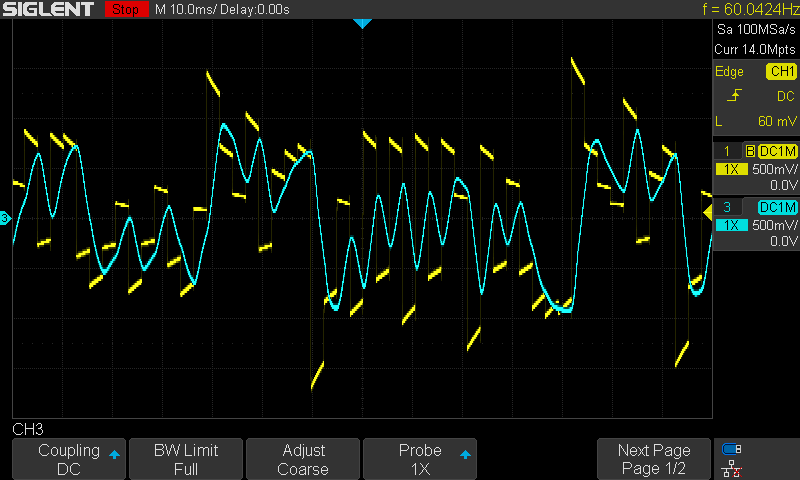

Filtered Random
                Waveform
